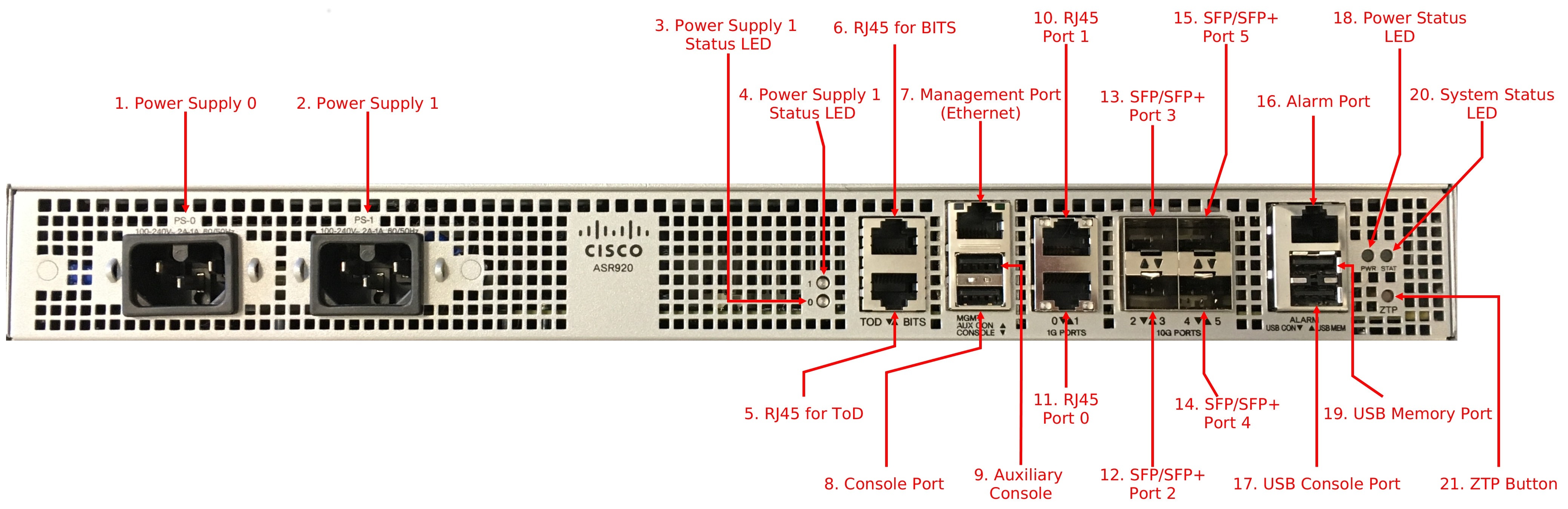

ASR920 supports two methods of console connectivity. "Serial Port" connects to port 8 below. "USB Port" connects to port 17 below.
RS232 Serial port | Image |
|---|
Port 8 on diagram. This is a USB-A shaped RS232 port (traditionally DB9/RJ45) and is NOT an actual USB port. Using this port requires: - Cisco A920-CONS-KIT-S adapter USB-A to RJ45 female
- RS232 port on laptop/PC. Traditionally a USB to DE9 cable
- Cisco rollover console cable. Traditionally RJ45 male to DB-9 female, light blue
| Info |
|---|
items 2 and 3 above are sometimes consolidated in to a single USB-A or USB-C to RJ45 male cable |
 Image Removed +  Image Removed
|  Image Added | and |  Image Added | | OR |
 Image Removed + Image Removed Image Added | and | Image Added |
|
Connect to port 8 on diagram above (pictured connected on right - lower device) | |
Set terminal software to 9600-N-8-1 | |
USB port |
|
|---|
Port 17 on diagram above. Requires: - USB-A to USB-A cable, such as Monoprice 5443
- Drivers: asr-9xx_usbconsole_drivers.zip
| |
ME3400
RS232 Serial port |
|
|---|
Requires - RS232 port on laptop/PC. Traditionally a USB to DE9 cable
- Cisco rollover console cable. Traditionally RJ45 male to DB-9 female
- Note that above are sometimes consolidated in to a single USB-A or USB-C to RJ45 male cable
| OR Image Modified |
| Connect to port 3 in diagram to right | |
|
|
...
